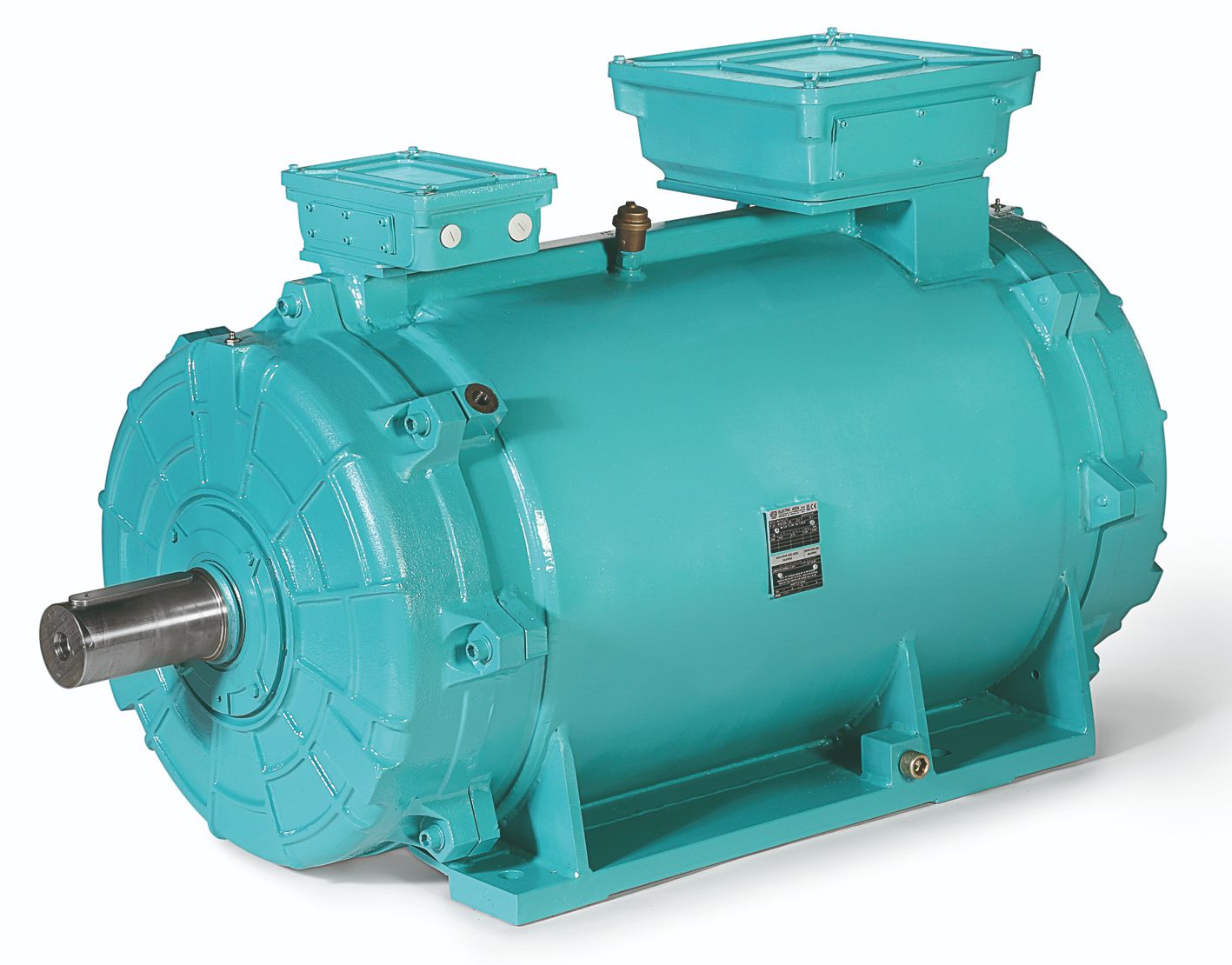

Water cooled squirrel cage three-phase asynchronous motors

Developing power, limiting noise

Suitable for use under extremely harsh working conditions, they have an accurately tested water cooling system which enables an effective and safe reduction of heat and noise.

W Series

Water cooled squirrel cage three-phase asynchronous motors

Steel frame
Power 11÷1500 kW
Frame sizes 160÷500
Insulation Class F
Water cooling (IC 7 A1W7)
Protection degree IP 55 (IP 56 on request)
Suitable for inverter supply (up to 690 V)
Vacuum impregnation (VPI) with ELECTRO ADDA
HVP system (High Voltage Performance)
IEC60034-1 Standards
GOST TR CU Certification

Advantages:

• Smaller overall dimensions and lighter motors
• Lower heat release into the working environment
• Lower noise
• No power reduction even at high ambient temperatures
• They can be used at a wide speed range at constant torque without derating
• Suitable for installation in harsh environments
